Product Detail

Light panel with 3 kinds of CCT

Features
Feactures
Specification
Application
Packing list
Download

1. Light source: visible light 5000k, IR 850nm and 940nm

2. Spectral consistency： error<3%（sample quantity: 100）

3. Illuminance uniformity> 95%（ take 200 points of the whole panel), color uniformity> 98%

4. Control characteristics: using high-frequency, high-memory chips, fast operating speed and high stability. The controller can also be connected to the PC through the serial cable to change the brightness, which is convenient for integrating the light source into the customer's product. It adopts constant current control with high adjustment precision and great consistency.

5. High reliability: less degeneration of photoelectric performance for long-term use


Spectral characteristic curve

5000k

CCT

850nm


940nm






Test instrumentation：CA-2000

Test area: 65 x 65mm

Test point：200 point

Illuminance uniformity：：>95%

color uniformity：>98%



一、System diagram



二、Characteristics

2.1 Spectra

2.2、Illuminance uniformity> 95%, color uniformity> 98%



1. Optical technology parameter

Illuminance range:

0~5000Lux adjustable

CCT range:

5000K±200K

infrared wavelength:

940±10nm/850±10nm

IR energy value:

0~2000uw/cm2

Uniformity:

>90%

2. Electrical parameters

Input voltage:

24VDC~48VDC

Input current:

8.3A(max)

3. Structure

Exterior dimension:

630x480x50mm

Light-emitting area:

600x450mm

Housing material:

Black oxidized aluminum

4. Application environment

Storage temperature:

-10℃~50℃

Operating humidity:

85% without condensation

Operating temperature:

-10℃~40℃










1. Electrical parameter

Input voltage:

110~240VAC

Input voltage:

24~48VDC

Input current:

8.3A(Max)

Start up consumption:

50W(Max)

Standby consumption:

0.5W

Operating frequency:

50 / 60Hz

2. Structure

Exterior dimension:

230x120x80mm

Housing material:

Black oxidized aluminum

3. Application environment

Storage temperature:

10℃~50℃

Operating humidity:

85% without condensation

Operating temperature:

10℃~40℃




1.1、Example of the overall dimension drawing (630*480*50mm)

2.1、Controller dimension drawing
2.2、Technical parameter of the controller
1.2、Technical parameter
一、Overall dimension drawing of the light source

1.Monitoring

2.Package(through the plastic packaging)

3.Detecting foreign bodies in the wine bottle

4.Electronic, semiconductor inspection


一、Application


Material

Quantity

Specification

Diagram

Light panel

1

630x480x50mm

Fig. 1

Controller

1

230x120x80mm programmed control

Fig. 2

Direct power source

1

1.5m delta plug cable

Fig. 3

RS-232 serial cable

1

DB9 serial cable

Fig. 4

Test report

1

CS-2000 Test report

Fig. 5

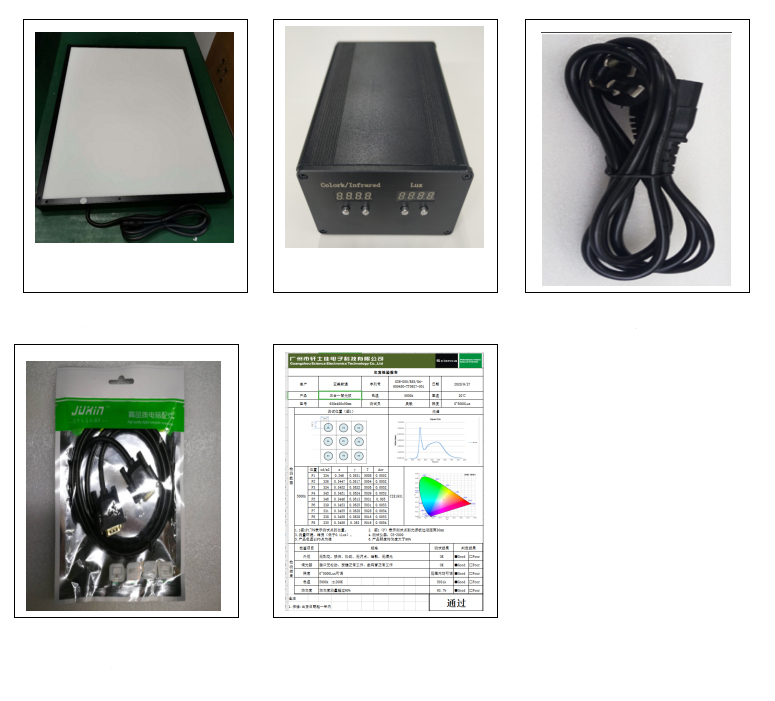

Packing list.jpg

一、Packing list
                   Fig.1                                                  Fig.2                                                         Fig.3
                   Fig.4                                                       Fig.5
三色温光源说明书.pdf
1.27MBDownload
